Model VT-AE-JD-3

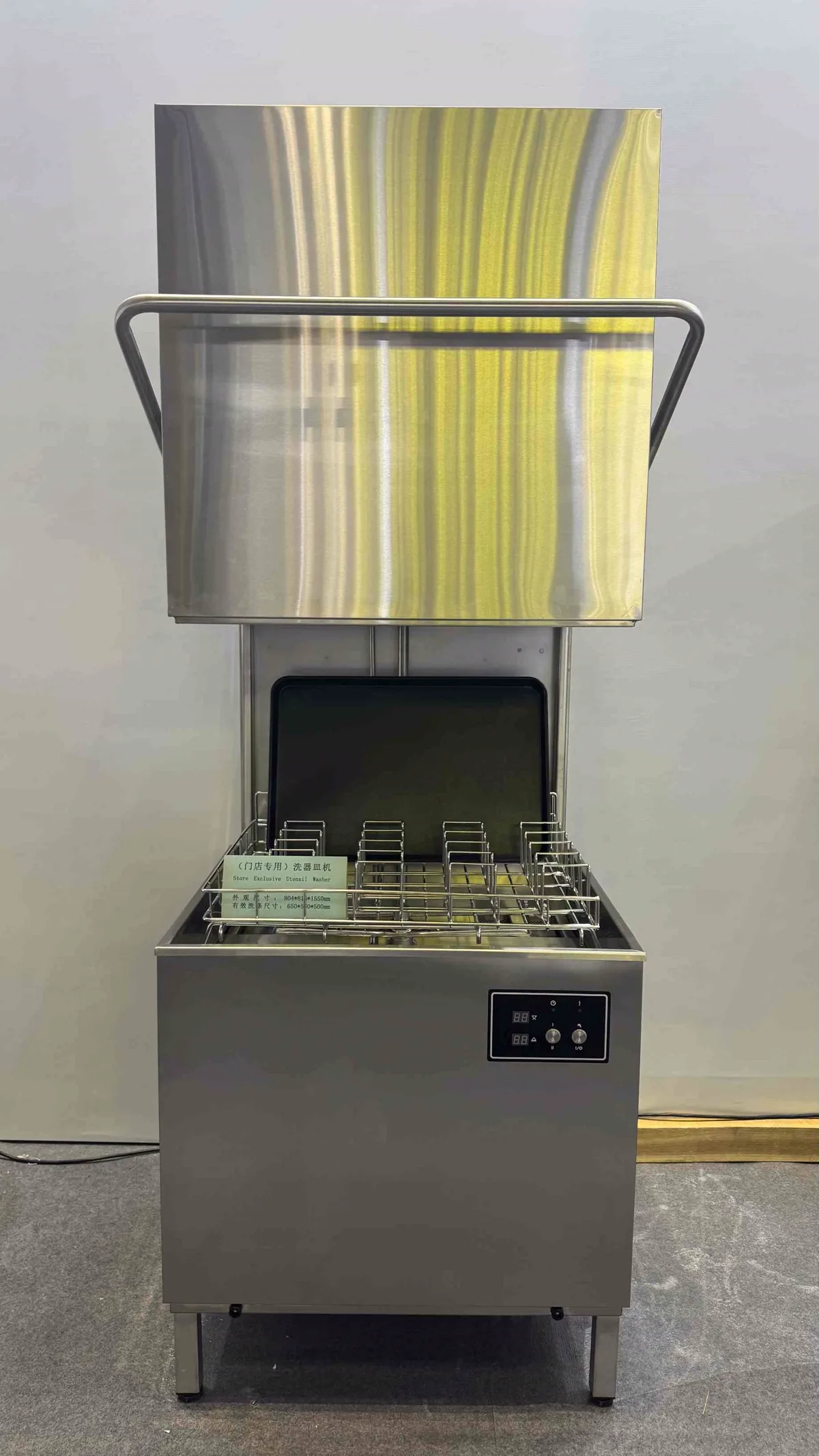

V-TAI JD-3 Bakingware Hood-type Washer
The only commercial hood-type dishwasher in its price class designed for the 600×400 mm European Bakery Norm tray standard. Built for small commercial kitchens — bakeries, cafés, patisseries, hotel pastry stations.
Throughput
180 trays/hour
Rack size
650×550 mm ⭐
Cycle time
2 min · 6 trays
Total power
13 kW
Starting price
From $4,400 FOB Shenzhen
Equivalent CE-certified performance for a fraction of premium-brand pricing.
Get a Quote- 10+ Years Manufacturing
- CE Certified
- 180 trays/hour
- <3% defect rate
- 8,000 m² factory
Full Specifications
Everything procurement, plant engineering, and health-inspection auditors need. Download the PDF version for offline review.
Dimensions & Weight
| Body (hood closed) | 804 × 816 × 1,550 mm |
| Max height (hood open) | 2,115 mm |
| Chamber height | 550 mm |
| Rack size | 650 × 550 mm |
| Net / gross weight | 145 kg / 165 kg |
| Footprint | 0.65 m² |
Wash Performance
| Throughput (standard trays) | 180 trays/hour |
| Load per cycle (standard trays) | 6 trays |
| Cycle time | 2 minutes (120 s) |
| Cycles per hour | 30 |
| Water per cycle | 2.0–2.5 L |
| Wash tank temperature | 60–65°C |
| Final rinse temperature | ≥82°C (NSF/ANSI 3) |
Item Compatibility

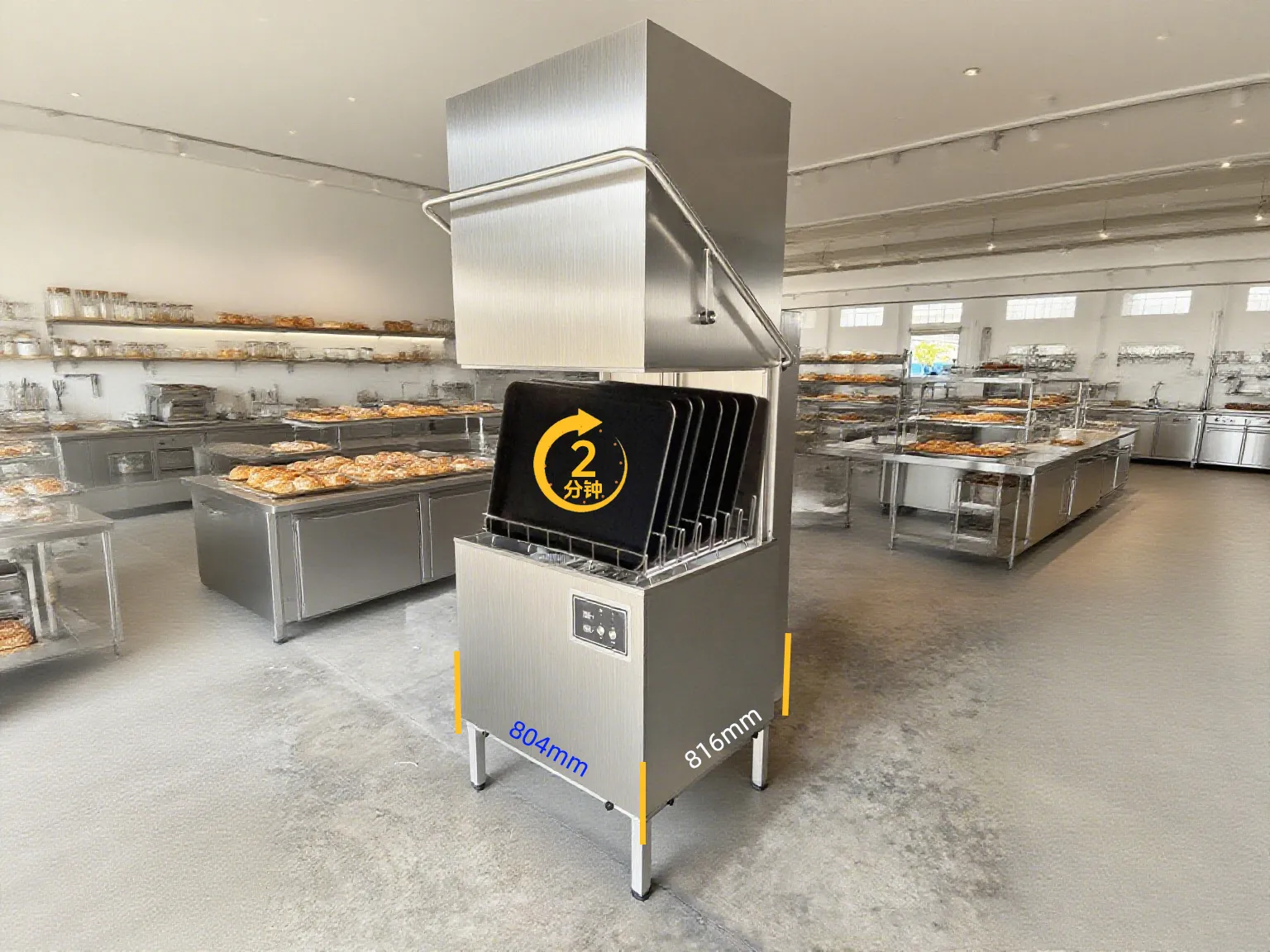

| 600×400 mm EN-Norm trays | 6 per cycle (vertical) |
| 18×26" half sheet pans | 6 per cycle (flat) |
| 18×26" full sheet pans | 1–2 per cycle (diagonal) |
| GN 2/1 gastronorm pans | 6 per cycle |
| 8" cake pans | 6 per cycle |
| 12" cake pans | 2 per cycle (vertical) |
| 14" / 16" pizza pans | 4 / 3 per cycle |
| Stockpots (≤ 28 cm dia.) | 2 per cycle (upright) |
| KitchenAid 5 L mixing bowls | 4 per cycle (vertical) |
Electrical
| Total power | 13 kW |
| Heating element | 9 kW |
| Pump | 0.75 kW |
| Power supply (standard) | 380V / 3N / 50Hz |
| Alternative supplies | 400V / 50Hz · 220V / 60Hz (specify at order) |
| Working current | 21.5 A |
| Recommended breaker | 32 A type C |
Water
| Inlet connection | G 3/4" thread |
| Inlet pressure | 2.5–6 kg/cm² |
| Inlet temperature | ≥ 10°C (50–60°C pre-heated saves energy) |
| Drain connection | G 1½" hose |
| Drain distance | ≤ 1.5 m (floor drain or wall drain) |
| Drain flow rate | ~25 L / min |
Materials
| Outer shell | SUS304 food-grade stainless steel |
| Chamber walls | SUS304 food-grade stainless steel |
| Rack / tray support frame | SUS304 food-grade stainless steel |
| Rotating wash arms | SUS304 food-grade stainless steel |
| Internal piping | Food-grade silicone + stainless |
Certifications & Standards
| Safety certification | CE (full EU compliance) |
| Quality system | ISO 9001:2015 |
| Sanitization standards | NSF/ANSI 3, EN 12875-2, DIN 10516, FDA Food Code 4-501.112 |
| Food-contact materials | FDA-compliant, EU 1935/2004 compliant |
| Machinery directive | EN ISO 12100, EN 60204-1 (low-voltage electrical) |
Functional
| Door-activated auto-start | Yes (close hood to start) |
| Heat recovery system | Optional upgrade (15–25% energy savings) |
| Auto detergent dispenser | Optional upgrade |
| Built-in rinse-aid pump | Optional upgrade |
| Door interlock cutoff | Standard |
| Voltage overload protection | Standard |
| Temperature display | LED digital |
| Operating noise | ≤ 70 dB |
How It Works — 4 Steps
Load
Slide racks of trays, pans, or bowls into the chamber.
Close hood
Cycle starts automatically — no buttons.
Wash + rinse
Dual arms blast 360°. Final rinse hits 82°C.
Unload
In 2 minutes (120 sec). Clean, sanitized, drip-drying.
Watch It Work
Two short clips: how to install the JD-3 in your kitchen, and how to fine-tune the built-in detergent dispenser.
12 Features That Matter
Every detail is engineered for the small commercial kitchen — not industrial overkill, not consumer compromise.
SUS304 Stainless Construction
Entire machine is food-grade SUS304 — rust-resistant, rodent-resistant, easy to sanitize.
Extra-Large Wash Chamber
650×550 mm rack fits 600×400 mm Bakery Norm trays, oversized stockpots, KitchenAid bowls.
Dual Rotating Wash Arms + Tray-Specific Nozzles
360° omnidirectional cleaning with tray-optimized nozzle geometry that maximizes water coverage across long flat baking-tray surfaces.
Intelligent Temp Control
Auto-sanitize above 82°C with LED digital display. Modular control board for easy service.
Ultra-Low Water Use
Just 2.0–2.5 L per cycle vs the 5–10 L most competitors consume.
Heat Recovery System
Hot water from the previous high-temp rinse flows into the main wash tank to maintain wash temperature and save energy 15–25%.
Sealed Insulated Door
Reduces steam escape by up to 70%, keeping your kitchen cooler and drier.
Ergonomic Operation
Push-pull basket rails. Door-activated cycle start — close the hood and walk away.
Multiple Safety Protections
Door interlock cuts power on open. Voltage overload protection built in.
Auto Detergent Ready
Pre-installed interface for automatic dispenser and water-treatment modules.
CE Safety Certified
EU compliance. Ready to ship to EU, GCC, APAC, LATAM, Africa.
Door-Activated Cycle Start
Close the hood and the wash cycle starts automatically. No buttons, no waiting.
What It Cleans
Click any category to see loading patterns, recommended cycle settings, and item-specific FAQs.
Configuration Options
Standard Electric
From $4,400
Base JD-3, 380V/3N/50Hz
+ Auto Detergent Dispenser
From $4,600
Adds liquid detergent & rinse-aid pumps
+ Heat Recovery Upgrade
From $4,900
Enhanced energy-saving package; hot rinse water flows back into wash tank
All prices FOB Shenzhen. Shipping and duties depend on destination.
Frequently Asked Questions
What is included in the box?
JD-3 machine, one custom stainless-steel baking-tray support frame, water inlet hose, drain hose, English operation manual, CE certificate.
Can it ship to the US?
Yes. US commercial kitchens typically have a 400V single-phase circuit, which the JD-3 connects to directly. CE-certified machines are imported into the US daily.
Warranty?
12-month manufacturer warranty on parts. Spare parts ship globally via international express courier.
What if I need spare parts in 5 years?
All key components — pumps, heating elements, control boards — are stocked at the factory. Same-day shipment of common parts.
Can I get a PDF spec sheet?
Yes. Click the "Download Spec Sheet PDF" button at the top of the page. Need a tender-specific or custom-configuration spec document? Contact us via WhatsApp or email.
